| Antal poler | 2 |
|---|---|
| Byggform | B3 |
| Byggstorlek | 80 |
| Effekt | 0,75 kW |
| Effektivitetsklass | IE3 |
| Färg | RAL 5021 |
| IP-klass | IP55 |
| Isolationsklass | F |
| Kylning | IC411 |
| Material | Aluminium |
|---|---|
| Matningsspänning | 230/400 V |
| Nominell hastighet | 3000 rpm |
| Omgivningstemperatur | -20°C till +40°C |
| Position av kopplingsbox | Upp |
| Rotation | Medurs |
| Vikt | 9 kg |

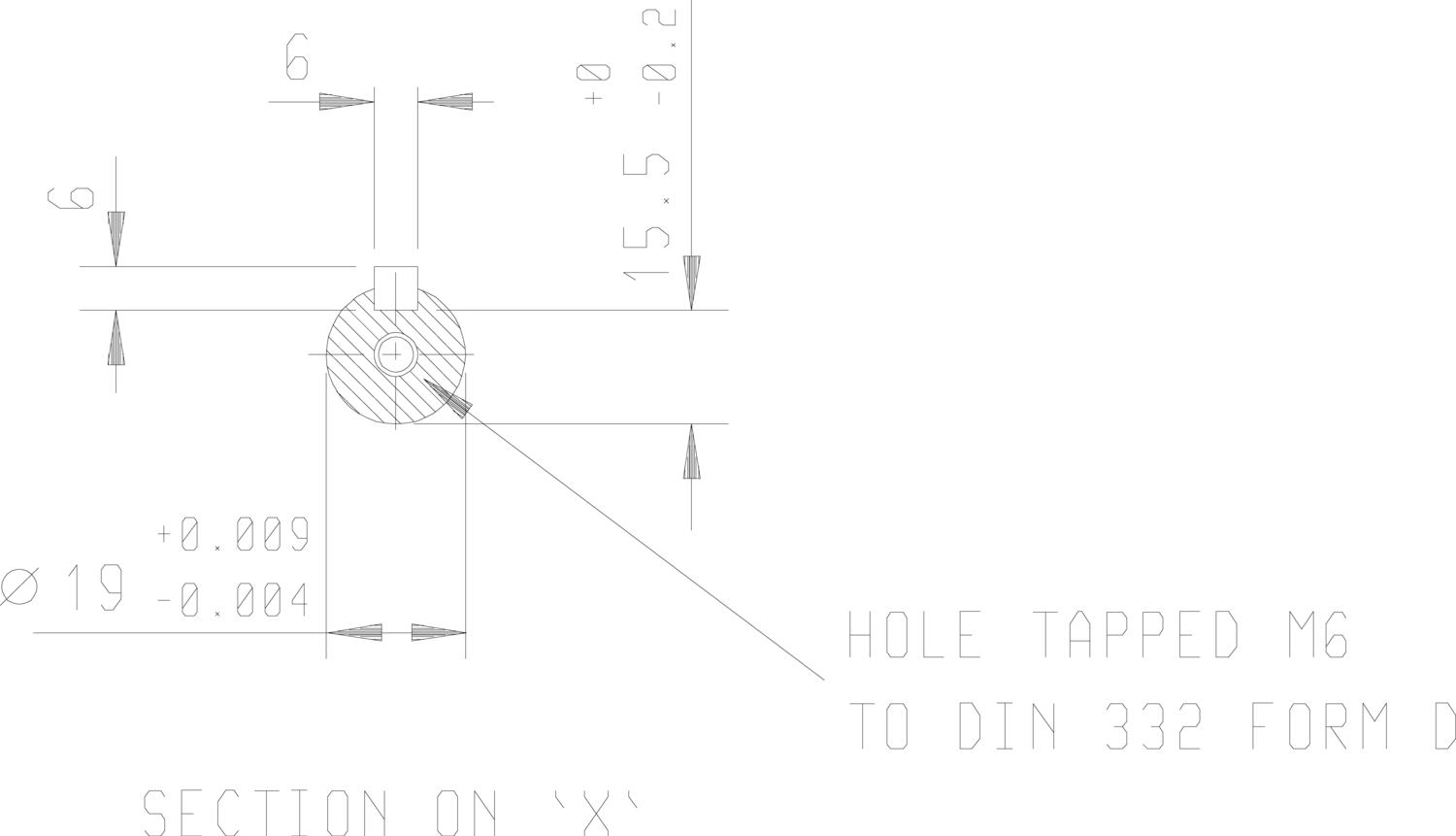

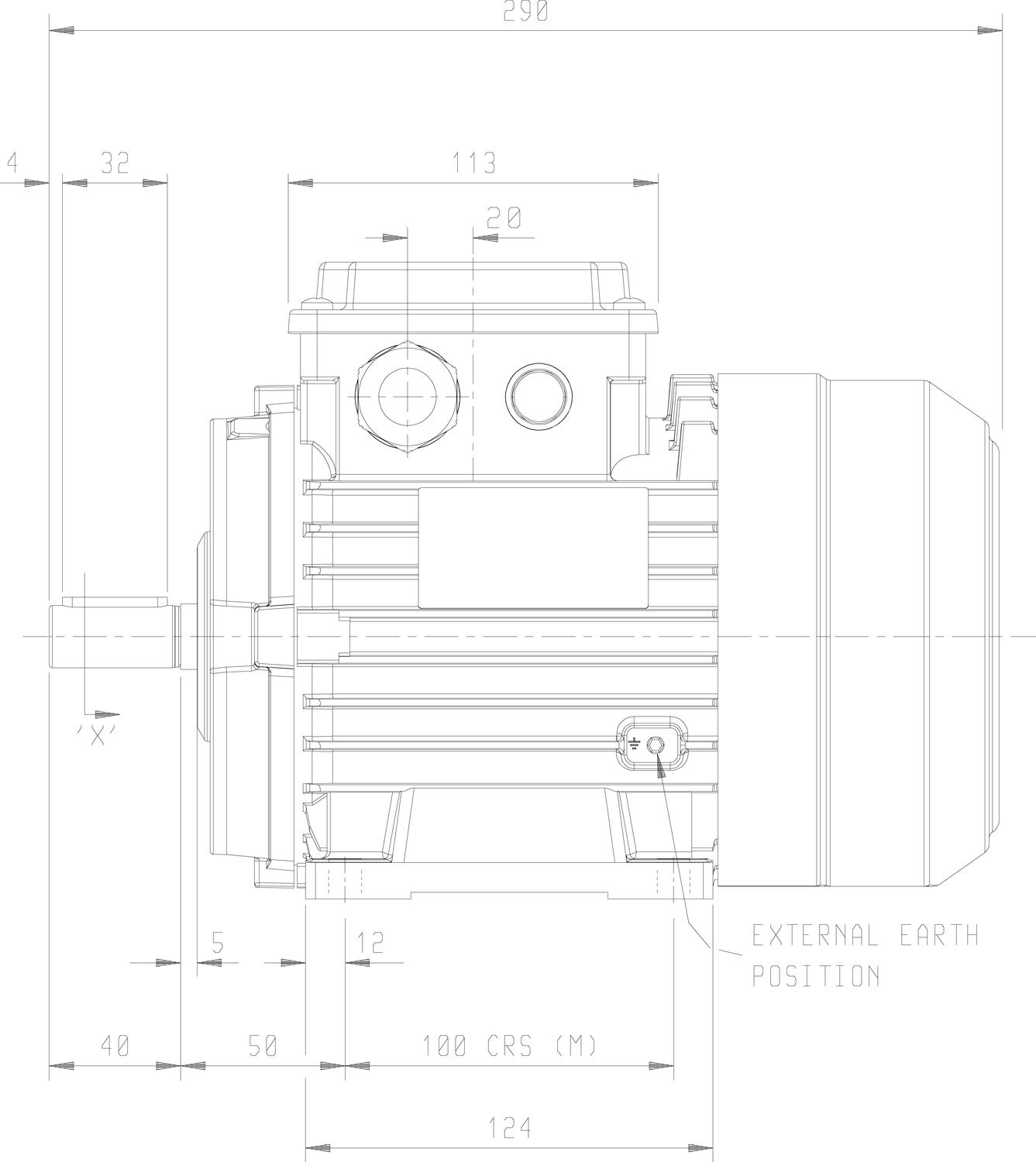

Nedladdning av CAD När du ser en grön
på en artikel i listan betyder det att du kan ladda ner dess CAD-ritning i det format som du först väljer i listan här. Klicka sedan på ikonen så genereras CAD-filen och nedladdning påbörjas direkt.

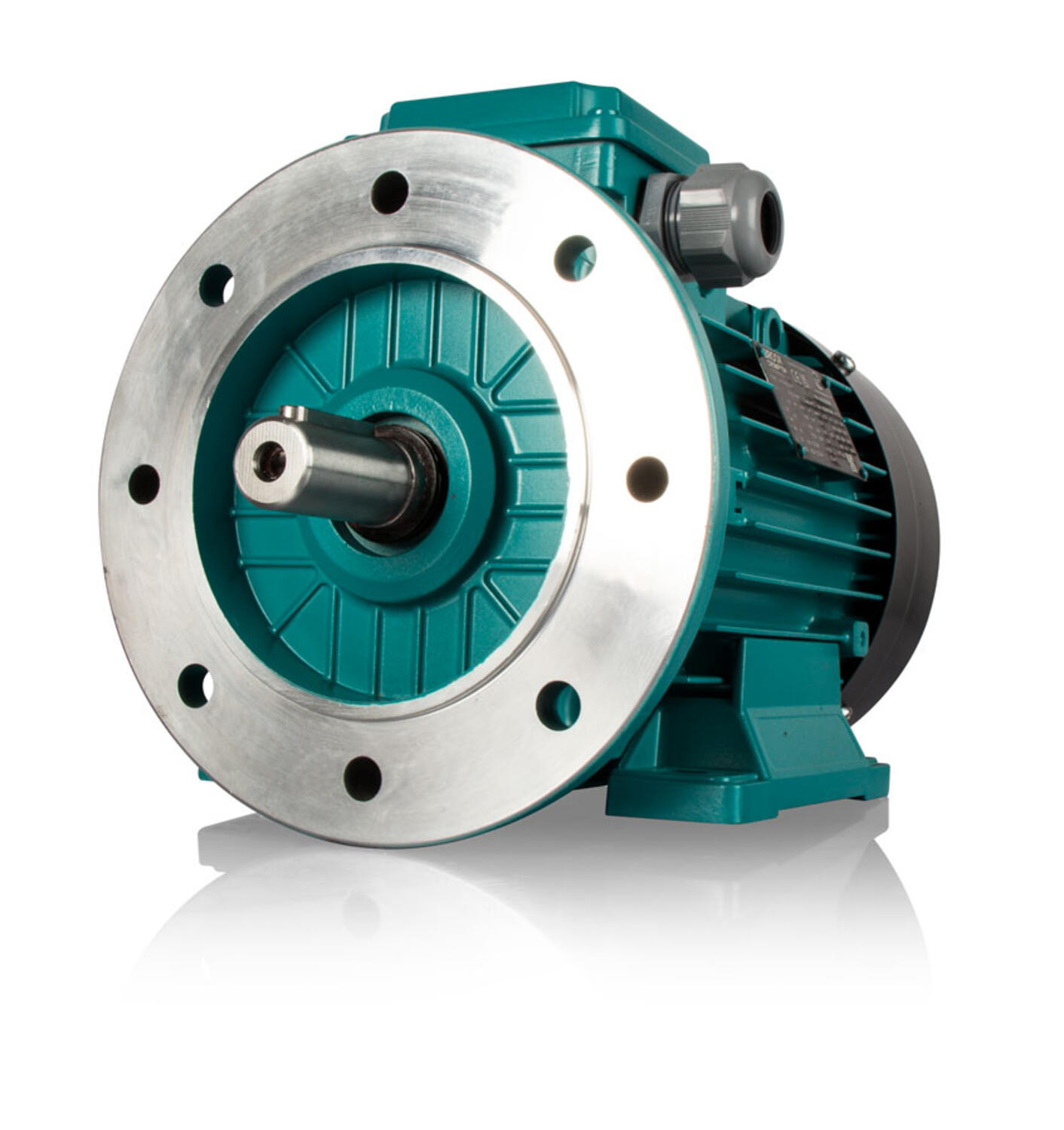

S30-serien tillverkas i Europa och är en serie energieffektiva 3-fas elmotorer i hög kvalite byggda enligt EN60034-30 (IE3).
Motorernas effektspann täcker från 0,55kW upp till 375kW i byggstorlekar 80-355 mm.
S30 kan användas i ett stort antal användningsområden där typiska applikationer är motordrivna fläktar, pumpar, kompressorer, conveyors mm.
Utförande i aluminium eller gjutjärnshus.
De flesta S30-standardmotorer finns på centralt lager och kan levereras omgående.
Modifieringar är möjliga för att passa dina specifika behov.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Varianter | Generera CAD | Antal poler | Byggform | Byggstorlek | Effekt | Effektivitetsklass | Isolationsklass | Material | Matningsspänning | Nominell hastighet | Vikt | Pris/enhet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
S30-JP DA80MB-IE3
Art.nr:
08033AT42R35002
Kopierad
|
4
|
B3
|
80
|
0,75 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
11 kg
|
| |||
|
S30-JP DA80MB-IE3
Art.nr:
08033AT42N45002
Kopierad
|
4
|
B14
|
80
|
0,75 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
11 kg
|
| |||
|
S30-JP DA80MB-IE3
Art.nr:
08033AT42R75002
Kopierad
|
4
|
B34
|
80
|
0,75 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
12 kg
|
| |||
|
S30-JP DA80MA-IE3
Art.nr:
08033AT22R35001
Kopierad
|
2
|
B3
|
80
|
0,75 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
9 kg
|
| |||
|
S30-JP DA80M-IE3
Art.nr:
08033AT22R35002
Kopierad
|
2
|
B3
|
80
|
1,1 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
10 kg
|
| |||
|
S30-JP DA90S-IE3
Art.nr:
09033AT22R35001
Kopierad
|
2
|
B3
|
90
|
1,5 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
13 kg
|
| |||
|
S30-JP DA112M-IE3
Art.nr:
11233AT24R35001
Kopierad
|
2
|
B3
|
112
|
4 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
28 kg
|
| |||
|
S30-JP DA100L-IE3
Art.nr:
10033AT22R35001
Kopierad
|
2
|
B3
|
100
|
3 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
22 kg
|
| |||
|
S30-JP DA132SB-IE3
Art.nr:
13233AT24M35002
Kopierad
|
2
|
B3
|
132
|
7,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
49 kg
|
| |||
|
S30-JP DA160MA-IE3
Art.nr:
16033AT24M35001
Kopierad
|
2
|
B3
|
160
|
11 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
81 kg
|
| |||
|
S30-JP DA160MB-IE3
Art.nr:
16033AT24M35002
Kopierad
|
2
|
B3
|
160
|
15 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
91 kg
|
| |||
|
S30-JP DA160L-IE3
Art.nr:
16033AT24M35003
Kopierad
|
2
|
B3
|
160
|
18,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
106 kg
|
| |||
|
S30-JP DA180M-IE3
Art.nr:
18033AT24M35001
Kopierad
|
2
|
B3
|
180
|
22 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
132 kg
|
| |||
|
S30-JP DA200L1-IE3
Art.nr:
20033AT24M35001
Kopierad
|
2
|
B3
|
200
|
30 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
197 kg
|
| |||
|
S30-JP DA200L2-IE3
Art.nr:
20033AT24M35002
Kopierad
|
2
|
B3
|
200
|
37 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
212 kg
|
| |||
|
S30-JP DA225M-IE3
Art.nr:
22533AT24M35001
Kopierad
|
2
|
B3
|
225
|
45 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
275 kg
|
| |||
|
S30-JP DA132SA-IE3
Art.nr:
13233AT24M35001
Kopierad
|
2
|
B3
|
132
|
5,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
43 kg
|
| |||
|
S30-JP DA90L-IE3
Art.nr:
09033AT22R35002
Kopierad
|
2
|
B3
|
90
|
2,2 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
16 kg
|
| |||
|
S30-JP DF160MA-IE3
Art.nr:
16033CT24F35001
Kopierad
|
2
|
B3
|
160
|
11 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
105 kg
|
| |||
|
S30-JP DF160MB-IE3
Art.nr:
16033CT24F35002
Kopierad
|
2
|
B3
|
160
|
15 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
119 kg
|
| |||
|
S30-JP DF180M-IE3
Art.nr:
18033CT24F35001
Kopierad
|
2
|
B3
|
180
|
22 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
177 kg
|
| |||
|
S30-JP DF200LA-IE3
Art.nr:
20033CT24F35001
Kopierad
|
2
|
B3
|
200
|
30 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
226 kg
|
| |||
|
S30-JP DF225MA-IE3
Art.nr:
22533CT24F35001
Kopierad
|
2
|
B3
|
225
|
45 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
302 kg
|
| |||
|
S30-JP DF250MA-IE3
Art.nr:
25033CT24F35001
Kopierad
|
2
|
B3
|
250
|
55 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
439 kg
|
| |||
|
S30-JP DF280S-IE3
Art.nr:
28033CT24F35001
Kopierad
|
2
|
B3
|
280
|
75 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
593 kg
|
| |||
|
S30-JP DF280M-IE3
Art.nr:
28033CT24F35002
Kopierad
|
2
|
B3
|
280
|
90 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
637 kg
|
| |||
|
S30-JP DF315S-IE3
Art.nr:
31533CT24F35001
Kopierad
|
2
|
B3
|
315
|
110 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
850 kg
|
| |||
|
S30-JP DF315M-IE3
Art.nr:
31533CT24F35002
Kopierad
|
2
|
B3
|
315
|
132 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
942 kg
|
| |||
|
S30-JP DF315MB-IE3
Art.nr:
31533CT24F35003
Kopierad
|
2
|
B3
|
315
|
160 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
958 kg
|
| |||
|
S30-JP DF315MD-IE3
Art.nr:
31533CT24F35005
Kopierad
|
2
|
B3
|
315
|
200 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
1122 kg
|
| |||
|
S30-JP DF355MA-IE3
Art.nr:
35533CT24F35004
Kopierad
|
2
|
B3
|
355
|
250 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
1383 kg
|
| |||
|
S30-JP DF355MB-IE3
Art.nr:
35533CT24F35006
Kopierad
|
2
|
B3
|
355
|
315 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
1543 kg
|
| |||
|
S30-JP DF200LB-IE3
Art.nr:
20033CT24F35002
Kopierad
|
2
|
B3
|
200
|
37 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
246 kg
|
| |||
|
S30-JP DF160L-IE3
Art.nr:
16033CT24F35003
Kopierad
|
2
|
B3
|
160
|
18,5 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
141 kg
|
| |||
|
S30-JP DA132SA-IE3
Art.nr:
13233AT24N55001
Kopierad
|
2
|
B5
|
132
|
5,5 kW
|
IE3
|
|
Aluminium
|
400/690 V
|
3000 rpm
|
43 kg
|
| |||
|
S30-JP DA132SB-IE3
Art.nr:
13233AT24N55002
Kopierad
|
2
|
B5
|
132
|
7,5 kW
|
IE3
|
|
Aluminium
|
400/690 V
|
3000 rpm
|
49 kg
|
| |||
|
S30-JP DA200L1-IE3
Art.nr:
20033AT24M55001
Kopierad
|
2
|
B5
|
200
|
30 kW
|
IE3
|
|
Aluminium
|
400/690 V
|
3000 rpm
|
197 kg
|
| |||
|
S30-JP DA225M-IE3
Art.nr:
22533AT24N55001
Kopierad
|
2
|
B5
|
225
|
45 kW
|
IE3
|
|
Aluminium
|
400/690 V
|
3000 rpm
|
275 kg
|
| |||
|
S30-JP DA90S-IE3
Art.nr:
09033AT22N55001
Kopierad
|
2
|
B5
|
90
|
1,5 kW
|
IE3
|
|
Aluminium
|
230/400 V
|
3000 rpm
|
13 kg
|
| |||
|
S30-JP DA160MA-IE3
Art.nr:
16033AT24N55001
Kopierad
|
2
|
B5
|
160
|
11 kW
|
IE3
|
|
Aluminium
|
400/690 V
|
3000 rpm
|
81 kg
|
| |||
|
S30-JP DA160MB-IE3
Art.nr:
16033AT24N55002
Kopierad
|
2
|
B5
|
160
|
15 kW
|
IE3
|
|
Aluminium
|
400/690 V
|
3000 rpm
|
91 kg
|
| |||
|
S30-JP DA160L-IE3
Art.nr:
16033AT24N55003
Kopierad
|
2
|
B5
|
160
|
18,5 kW
|
IE3
|
|
Aluminium
|
400/690 V
|
3000 rpm
|
106 kg
|
| |||
|
S30-JP DA180M-IE3
Art.nr:
18033AT24N55001
Kopierad
|
2
|
B5
|
180
|
22 kW
|
IE3
|
|
Aluminium
|
400/690 V
|
3000 rpm
|
132 kg
|
| |||
|
S30-JP DA80MA-IE3
Art.nr:
08033AT22N55001
Kopierad
|
2
|
B5
|
80
|
0,75 kW
|
IE3
|
|
Aluminium
|
230/400 V
|
3000 rpm
|
9 kg
|
| |||
|
S30-JP DA80M-IE3
Art.nr:
08033AT22N55002
Kopierad
|
2
|
B5
|
80
|
1,1 kW
|
IE3
|
|
Aluminium
|
230/400 V
|
3000 rpm
|
10 kg
|
| |||
|
S30-JP DA90L-IE3
Art.nr:
09033AT22N55002
Kopierad
|
2
|
B5
|
90
|
2,2 kW
|
IE3
|
|
Aluminium
|
230/400 V
|
3000 rpm
|
16 kg
|
| |||
|
S30-JP DA100L-IE3
Art.nr:
10033AT22N55001
Kopierad
|
2
|
B5
|
100
|
3 kW
|
IE3
|
|
Aluminium
|
230/400 V
|
3000 rpm
|
22 kg
|
| |||
|
S30-JP DA112M-IE3
Art.nr:
11233AT24N55001
Kopierad
|
2
|
B5
|
112
|
4 kW
|
IE3
|
|
Aluminium
|
400/690 V
|
3000 rpm
|
28 kg
|
| |||
|
S30-JP DA200L2-IE3
Art.nr:
20033AT24N55002
Kopierad
|
2
|
B5
|
200
|
37 kW
|
IE3
|
|
Aluminium
|
400/690 V
|
3000 rpm
|
212 kg
|
| |||
|
S30-JP DF160L-IE3
Art.nr:
16033CT24N55003
Kopierad
|
2
|
B3
|
160
|
18,5 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
141 kg
|
| |||
|
S30-JP DF200LB-IE3
Art.nr:
20033CT24N55002
Kopierad
|
2
|
B3
|
200
|
37 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
246 kg
|
| |||
|
S30-JP DF225MA-IE3
Art.nr:
22533CT24N55001
Kopierad
|
2
|
B3
|
225
|
45 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
302 kg
|
| |||
|
S30-JP DF250MA-IE3
Art.nr:
25033CT24N55001
Kopierad
|
2
|
B3
|
250
|
55 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
439 kg
|
| |||
|
S30-JP DF315MB-IE3
Art.nr:
31533CT24N55003
Kopierad
|
2
|
B3
|
315
|
160 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
958 kg
|
| |||
|
S30-JP DF315MD-IE3
Art.nr:
31533CT24N55005
Kopierad
|
2
|
B3
|
315
|
200 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
1122 kg
|
| |||
|
S30-JP DF355MA-IE3
Art.nr:
35533CT24N55004
Kopierad
|
2
|
B3
|
355
|
250 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
1383 kg
|
| |||
|
S30-JP DF355MB-IE3
Art.nr:
35533CT24N55006
Kopierad
|
2
|
B3
|
355
|
315 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
1543 kg
|
| |||
|
S30-JP DF200LA-IE3
Art.nr:
20033CT24N55001
Kopierad
|
2
|
B3
|
200
|
30 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
226 kg
|
| |||
|
S30-JP DF160MB-IE3
Art.nr:
16033CT24N55002
Kopierad
|
2
|
B5
|
160
|
15 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
119 kg
|
| |||
|
S30-JP DF160MA-IE3
Art.nr:
16033CT24N55001
Kopierad
|
2
|
B3
|
160
|
11 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
105 kg
|
| |||
|
S30-JP DF180M-IE3
Art.nr:
18033CT24N55001
Kopierad
|
2
|
B3
|
180
|
22 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
177 kg
|
| |||
|
S30-JP DF280S-IE3
Art.nr:
28033CT24N55001
Kopierad
|
2
|
B3
|
280
|
75 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
593 kg
|
| |||
|
S30-JP DF280M-IE3
Art.nr:
28033CT24N55002
Kopierad
|
2
|
B3
|
280
|
90 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
637 kg
|
| |||
|
S30-JP DF315S-IE3
Art.nr:
31533CT24N55001
Kopierad
|
2
|
B3
|
315
|
110 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
850 kg
|
| |||
|
S30-JP DF315M-IE3
Art.nr:
31533CT24N55002
Kopierad
|
2
|
B3
|
315
|
132 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
942 kg
|
| |||
|
S30-JP DA90S-IE3
Art.nr:
09033AT22N45001
Kopierad
|
2
|
B14
|
90
|
1,5 kW
|
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
13 kg
|
| |||
|
S30-JP DA100L-IE3
Art.nr:
10033AT22N45001
Kopierad
|
2
|
B14
|
100
|
3 kW
|
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
22 kg
|
| |||
|
S30-JP DA132SA-IE3
Art.nr:
13233AT24N45001
Kopierad
|
2
|
B14
|
132
|
5,5 kW
|
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
43 kg
|
| |||
|
S30-JP DA132SB-IE3
Art.nr:
13233AT24N45002
Kopierad
|
2
|
B14
|
132
|
7,5 kW
|
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
49 kg
|
| |||
|
S30-JP DA160MA-IE3
Art.nr:
16033AT24N45001
Kopierad
|
2
|
B14
|
160
|
11 kW
|
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
81 kg
|
| |||
|
S30-JP DA160MB-IE3
Art.nr:
16033AT24N45002
Kopierad
|
2
|
B14
|
160
|
15 kW
|
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
91 kg
|
| |||
|
S30-JP DA160L-IE3
Art.nr:
16033AT24N45003
Kopierad
|
2
|
B14
|
160
|
18,5 kW
|
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
106 kg
|
| |||
|
S30-JP DF160MB-IE3
Art.nr:
16033CT24N45002
Kopierad
|
2
|
B14
|
160
|
15 kW
|
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
119 kg
|
| |||
|
S30-JP DF160L-IE3
Art.nr:
16033CT24N45003
Kopierad
|
2
|
B14
|
160
|
18,5 kW
|
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
141 kg
|
| |||
|
S30-JP DA80M-IE3
Art.nr:
08033AT22N45002
Kopierad
|
2
|
B14
|
80
|
1,1 kW
|
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
10 kg
|
| |||
|
S30-JP DA90L-IE3
Art.nr:
09033AT22N45002
Kopierad
|
2
|
B14
|
90
|
2,2 kW
|
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
16 kg
|
| |||
|
S30-JP DA112M-IE3
Art.nr:
11233AT24N45001
Kopierad
|
2
|
B14
|
112
|
4 kW
|
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
28 kg
|
| |||
|
S30-JP DF160MA-IE3
Art.nr:
16033CT24N45001
Kopierad
|
2
|
B14
|
160
|
11 kW
|
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
105 kg
|
| |||
|
S30-JP DA80MA-IE3
Art.nr:
08033AT22N45001
Kopierad
|
2
|
B14
|
80
|
0,75 kW
|
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
9 kg
|
| |||
S30-JP DA80MA-IE3
Art.nr:
08033AT22R85001
Kopierad
|
2
|
B35
|
80
|
0,75 kW
|
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
9 kg
|
| |||
|
S30-JP DA80M-IE3
Art.nr:
08033AT22R85002
Kopierad
|
2
|
B35
|
80
|
1,1 kW
|
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
10 kg
|
| |||
|
S30-JP DA90L-IE3
Art.nr:
09033AT22R85002
Kopierad
|
2
|
B35
|
90
|
2,2 kW
|
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
16 kg
|
| |||
|
S30-JP DA100L-IE3
Art.nr:
10033AT22R85001
Kopierad
|
2
|
B35
|
100
|
3 kW
|
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
22 kg
|
| |||
|
S30-JP DA112M-IE3
Art.nr:
11233AT24R85001
Kopierad
|
2
|
B35
|
112
|
4 kW
|
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
28 kg
|
| |||
|
S30-JP DA132SB-IE3
Art.nr:
13233AT24M85002
Kopierad
|
2
|
B35
|
132
|
7,5 kW
|
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
49 kg
|
| |||
|
S30-JP DA160MA-IE3
Art.nr:
16033AT24M85001
Kopierad
|
2
|
B35
|
160
|
11 kW
|
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
81 kg
|
| |||
|
S30-JP DA160MB-IE3
Art.nr:
16033AT24M85002
Kopierad
|
2
|
B35
|
160
|
15 kW
|
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
91 kg
|
| |||
|
S30-JP DA160L-IE3
Art.nr:
16033AT24M85003
Kopierad
|
2
|
B35
|
160
|
18,5 kW
|
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
106 kg
|
| |||
|
S30-JP DA180M-IE3
Art.nr:
18033AT24M85001
Kopierad
|
2
|
B35
|
180
|
22 kW
|
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
132 kg
|
| |||
|
S30-JP DA200L1-IE3
Art.nr:
20033AT24M85001
Kopierad
|
2
|
B35
|
200
|
30 kW
|
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
197 kg
|
| |||
|
S30-JP DA200L2-IE3
Art.nr:
20033AT24M85002
Kopierad
|
2
|
B35
|
200
|
37 kW
|
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
212 kg
|
| |||
|
S30-JP DA225M-IE3
Art.nr:
22533AT24M85001
Kopierad
|
2
|
B35
|
225
|
45 kW
|
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
275 kg
|
| |||
|
S30-JP DA90S-IE3
Art.nr:
09033AT22R85001
Kopierad
|
2
|
B35
|
90
|
1,5 kW
|
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
13 kg
|
| |||
|
S30-JP DA132SA-IE3
Art.nr:
13233AT24M85001
Kopierad
|
2
|
B35
|
132
|
5,5 kW
|
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
43 kg
|
| |||
|
S30-JP DF160MA-IE3
Art.nr:
16033CT24F85001
Kopierad
|
2
|
B35
|
160
|
11 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
105 kg
|
| |||
|
S30-JP DF160MB-IE3
Art.nr:
16033CT24F85002
Kopierad
|
2
|
B35
|
160
|
15 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
119 kg
|
| |||
|
S30-JP DF160L-IE3
Art.nr:
16033CT24F85003
Kopierad
|
2
|
B35
|
160
|
18,5 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
141 kg
|
| |||
|
S30-JP DF180M-IE3
Art.nr:
18033CT24F85001
Kopierad
|
2
|
B35
|
180
|
22 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
177 kg
|
| |||
|
S30-JP DF200LB-IE3
Art.nr:
20033CT24F85002
Kopierad
|
2
|
B35
|
200
|
37 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
246 kg
|
| |||
|
S30-JP DF225MA-IE3
Art.nr:
22533CT24F85001
Kopierad
|
2
|
B35
|
225
|
45 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
302 kg
|
| |||
|
S30-JP DF250MA-IE3
Art.nr:
25033CT24F85001
Kopierad
|
2
|
B35
|
250
|
55 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
439 kg
|
| |||
|
S30-JP DF280S-IE3
Art.nr:
28033CT24F85001
Kopierad
|
2
|
B35
|
280
|
75 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
593 kg
|
| |||
|
S30-JP DF280M-IE3
Art.nr:
28033CT24F85002
Kopierad
|
2
|
B35
|
280
|
90 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
637 kg
|
| |||
|
S30-JP DF315M-IE3
Art.nr:
31533CT24F85002
Kopierad
|
2
|
B35
|
315
|
132 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
942 kg
|
| |||
|
S30-JP DF315MB-IE3
Art.nr:
31533CT24F85003
Kopierad
|
2
|
B35
|
315
|
160 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
958 kg
|
| |||
|
S30-JP DF315MD-IE3
Art.nr:
31533CT24F85005
Kopierad
|
2
|
B35
|
315
|
200 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
1122 kg
|
| |||
|
S30-JP DF355MB-IE3
Art.nr:
35533CT24F85006
Kopierad
|
2
|
B35
|
355
|
315 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
1543 kg
|
| |||
|
S30-JP DF200LA-IE3
Art.nr:
20033CT24F85001
Kopierad
|
2
|
B35
|
200
|
30 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
226 kg
|
| |||
|
S30-JP DF315S-IE3
Art.nr:
31533CT24F85001
Kopierad
|
2
|
B35
|
315
|
110 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
850 kg
|
| |||
|
S30-JP DF355MA-IE3
Art.nr:
35533CT24F85004
Kopierad
|
2
|
B35
|
355
|
250 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
1383 kg
|
| |||
|
S30-JP DA80MA-IE3
Art.nr:
08033AT22R75001
Kopierad
|
2
|
B34
|
80
|
0,75 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
9 kg
|
| |||
|
S30-JP DA90S-IE3
Art.nr:
09033AT22R75001
Kopierad
|
2
|
B34
|
90
|
1 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
13 kg
|
| |||
|
S30-JP DA160MA-IE3
Art.nr:
16033AT24M75001
Kopierad
|
2
|
B34
|
160
|
11 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
81 kg
|
| |||
|
S30-JP DA132SA-IE5
Art.nr:
13233AT24M75001
Kopierad
|
2
|
B34
|
132
|
5,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
43 kg
|
| |||
|
S30-JP DA132SB-IE3
Art.nr:
13233AT24M75002
Kopierad
|
2
|
B34
|
132
|
7,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
49 kg
|
| |||
|
S30-JP DA80M-IE3
Art.nr:
08033AT22R75002
Kopierad
|
2
|
B34
|
80
|
1,1 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
10 kg
|
| |||
|
S30-JP DA90L-IE3
Art.nr:
09033AT22R75002
Kopierad
|
2
|
B34
|
90
|
2,2 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
16 kg
|
| |||
|
S30-JP DA112M-IE3
Art.nr:
11233AT24R75001
Kopierad
|
2
|
B34
|
112
|
4 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
28 kg
|
| |||
|
S30-JP DA160MB-IE3
Art.nr:
16033AT24M75002
Kopierad
|
2
|
B34
|
160
|
15 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
91 kg
|
| |||
|
S30-JP DA160L-IE3
Art.nr:
16033AT24M75003
Kopierad
|
2
|
B34
|
160
|
18,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
3000 rpm
|
106 kg
|
| |||
|
S30-JP DF160MA-IE3
Art.nr:
16033CT24F75001
Kopierad
|
2
|
B34
|
160
|
11 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
105 kg
|
| |||
|
S30-JP DF160MB-IE3
Art.nr:
16033CT24F75002
Kopierad
|
2
|
B34
|
160
|
15 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
119 kg
|
| |||
|
S30-JP DF160L-IE3
Art.nr:
16033CT24F75003
Kopierad
|
2
|
B34
|
160
|
18,5 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
3000 rpm
|
141 kg
|
| |||
|
S30-JP DA100L-IE3
Art.nr:
10033AT22R75001
Kopierad
|
2
|
B34
|
100
|
3 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
3000 rpm
|
22 kg
|
| |||
|
S30-JP DA80MA-IE3
Art.nr:
08033AT42R35001
Kopierad
|
4
|
B3
|
80
|
0,55 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
10 kg
|
| |||
|
S30-JP DA90S-IE3
Art.nr:
09033AT42R35001
Kopierad
|
4
|
B3
|
90
|
1,1 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
14 kg
|
| |||
|
S30-JP DA90L-IE3
Art.nr:
09033AT42R35002
Kopierad
|
4
|
B3
|
90
|
1,5 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
17 kg
|
| |||
|
S30-JP DA100L1-IE3
Art.nr:
10033AT42R35001
Kopierad
|
4
|
B3
|
100
|
2,2 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
22 kg
|
| |||
|
S30-JP DA100L2-IE3
Art.nr:
10033AT42R35002
Kopierad
|
4
|
B3
|
100
|
3 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
25 kg
|
| |||
|
S30-JP DA132S-IE3
Art.nr:
11233AT44R35001
Kopierad
|
4
|
B3
|
112
|
4 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
31 kg
|
| |||
|
S30-JP DA132M-IE3
Art.nr:
13233AT44M35001
Kopierad
|
4
|
B3
|
132
|
5,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
45 kg
|
| |||
|
S30-JP DA160M-IE3
Art.nr:
13233AT44M35002
Kopierad
|
4
|
B3
|
132
|
7,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
58 kg
|
| |||
|
S30-JP DA160M-IE3
Art.nr:
16033AT44M35001
Kopierad
|
4
|
B3
|
160
|
11 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
89 kg
|
| |||
|
S30-JP DA160L-IE3
Art.nr:
16033AT44M35002
Kopierad
|
4
|
B3
|
160
|
15 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
111 kg
|
| |||
|
S30-JP DA180M-IE3
Art.nr:
18033AT44M35001
Kopierad
|
4
|
B3
|
180
|
18,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
127 kg
|
| |||
|
S30-JP DA180L-IE3
Art.nr:
18033AT44M35002
Kopierad
|
4
|
B3
|
180
|
22 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
153 kg
|
| |||
|
S30-JP DA200L-IE3
Art.nr:
20033AT44M35001
Kopierad
|
4
|
B3
|
200
|
30 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
195 kg
|
| |||
|
S30-JP DA225S-IE3
Art.nr:
22533AT44M35001
Kopierad
|
4
|
B3
|
225
|
37 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
238 kg
|
| |||
|
S30-JP DA225M-IE3
Art.nr:
22533AT44M35002
Kopierad
|
4
|
B3
|
225
|
45 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
275 kg
|
| |||
|
S30-JP DF160M-IE3
Art.nr:
16033CT44F35001
Kopierad
|
4
|
B3
|
160
|
11 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
114 kg
|
| |||
|
S30-JP DF160LA-IE3
Art.nr:
16033CT44F35002
Kopierad
|
4
|
B3
|
160
|
15 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
138 kg
|
| |||
|
S30-JP DF180MA-IE3
Art.nr:
18033CT44F35001
Kopierad
|
4
|
B3
|
180
|
18,5 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
127 kg
|
| |||
|
S30-JP DF180LA-IE3
Art.nr:
18033CT44F35002
Kopierad
|
4
|
B3
|
180
|
22 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
180 kg
|
| |||
|
S30-JP DF200LA-IE3
Art.nr:
20033CT44F35001
Kopierad
|
4
|
B3
|
200
|
30 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
234 kg
|
| |||
|
S30-JP DF225SA-IE3
Art.nr:
22533CT44F35001
Kopierad
|
4
|
B3
|
225
|
37 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
307 kg
|
| |||
|
S30-JP DF225MA-IE3
Art.nr:
22533CT44F35002
Kopierad
|
4
|
B3
|
225
|
45 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
316 kg
|
| |||
|
S30-JP DF250MA-IE3
Art.nr:
25033CT44F35001
Kopierad
|
4
|
B3
|
250
|
55 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
439 kg
|
| |||
|
S30-JP DF280SA-IE3
Art.nr:
28033CT44F35001
Kopierad
|
4
|
B3
|
280
|
75 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
603 kg
|
| |||
|
S30-JP DF280MA-IE3
Art.nr:
28033CT44F35002
Kopierad
|
4
|
B3
|
280
|
90 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
654 kg
|
| |||
|
S30-JP DF315SA-IE3
Art.nr:
31533CT44F35001
Kopierad
|
4
|
B3
|
315
|
110 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
864 kg
|
| |||
|
S30-JP DF315MA-IE3
Art.nr:
31533CT44F35002
Kopierad
|
4
|
B3
|
315
|
132 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
920 kg
|
| |||
|
S30-JP DF315LA-IE3
Art.nr:
31533CT44F35003
Kopierad
|
4
|
B3
|
315
|
160 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
990 kg
|
| |||
|
S30-JP DF315MD-IE3
Art.nr:
31533CT44F35005
Kopierad
|
4
|
B3
|
315
|
200 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
1148 kg
|
| |||
|
S30-JP DF355MA-IE3
Art.nr:
35533CT44F35004
Kopierad
|
4
|
B3
|
355
|
250 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
1430 kg
|
| |||
|
S30-JP DF355MB-IE3
Art.nr:
35533CT44F35006
Kopierad
|
4
|
B3
|
355
|
315 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
1578 kg
|
| |||
|
S30-JP DF355MC-IE3
Art.nr:
35533CT44F35007
Kopierad
|
4
|
B3
|
355
|
355 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
1612 kg
|
| |||
|
S30-JP DA80MA-IE3
Art.nr:
08033AT42N55001
Kopierad
|
4
|
B5
|
80
|
0,55 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
10 kg
|
| |||
|
S30-JP DA80MB-IE3
Art.nr:
08033AT42N55002
Kopierad
|
4
|
B5
|
80
|
0,75 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
11,7 kg
|
| |||
|
S30-JP DA90S-IE3
Art.nr:
09033AT42N55001
Kopierad
|
4
|
B5
|
90
|
1,1 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
14,5 kg
|
| |||
|
S30-JP DA90L-IE3
Art.nr:
09033AT42N55002
Kopierad
|
4
|
B5
|
90
|
1,5 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
17 kg
|
| |||
|
S30-JP DA100L1-IE3
Art.nr:
10033AT42N55001
Kopierad
|
4
|
B5
|
100
|
2,2 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
22 kg
|
| |||
|
S30-JP DA100L2-IE3
Art.nr:
10033AT42N55002
Kopierad
|
4
|
B5
|
100
|
3 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
25 kg
|
| |||
|
S30-JP DA112M-IE3
Art.nr:
11233AT44N55001
Kopierad
|
4
|
B5
|
112
|
4 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
31 kg
|
| |||
|
S30-JP DA132S-IE3
Art.nr:
13233AT44N55001
Kopierad
|
4
|
B5
|
132
|
5,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
46 kg
|
| |||
|
S30-JP DA132M-IE3
Art.nr:
13233AT44N55002
Kopierad
|
4
|
B5
|
132
|
7,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
59 kg
|
| |||
|
S30-JP DA160M-IE3
Art.nr:
16033AT44N55001
Kopierad
|
4
|
B5
|
160
|
11 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
101 kg
|
| |||
|
S30-JP DA160L-IE3
Art.nr:
16033AT44N55002
Kopierad
|
4
|
B5
|
160
|
15 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
123 kg
|
| |||
|
S30-JP DA180M-IE3
Art.nr:
18033AT44N55001
Kopierad
|
4
|
B5
|
180
|
18,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
137 kg
|
| |||
|
S30-JP DA180L-IE3
Art.nr:
18033AT44N55002
Kopierad
|
4
|
B5
|
180
|
22 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
166 kg
|
| |||
|
S30-JP DA200L-IE3
Art.nr:
20033AT44N55001
Kopierad
|
4
|
B5
|
200
|
30 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
207 kg
|
| |||
|
S30-JP DA225S-IE3
Art.nr:
22533AT44N55001
Kopierad
|
4
|
B5
|
225
|
37 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
255 kg
|
| |||
|
S30-JP DA225M-IE3
Art.nr:
22533AT44N55002
Kopierad
|
4
|
B5
|
225
|
45 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
285 kg
|
| |||
|
S30-JP DF160M-IE3
Art.nr:
16033CT44N55001
Kopierad
|
4
|
B5
|
160
|
11 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
120 kg
|
| |||
|
S30-JP DF160LA-IE3
Art.nr:
16033CT44N55002
Kopierad
|
4
|
B5
|
160
|
15 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
142 kg
|
| |||
|
S30-JP DF180MA-IE3
Art.nr:
18033CT44N55001
Kopierad
|
4
|
B5
|
180
|
18,5 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
166 kg
|
| |||
|
S30-JP DF180LA-IE3
Art.nr:
18033CT44N55002
Kopierad
|
4
|
B5
|
180
|
22 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
185 kg
|
| |||
|
S30-JP DF200LA-IE3
Art.nr:
20033CT44N55001
Kopierad
|
4
|
B5
|
200
|
30 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
246 kg
|
| |||
|
S30-JP DF225SA-IE3
Art.nr:
22533CT44N55001
Kopierad
|
4
|
B5
|
225
|
37 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
307 kg
|
| |||
|
S30-JP DF225MA-IE3
Art.nr:
22533CT44N55002
Kopierad
|
4
|
B5
|
225
|
45 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
316 kg
|
| |||
|
S30-JP DF250MA-IE3
Art.nr:
25033CT44N55001
Kopierad
|
4
|
B5
|
250
|
55 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
450 kg
|
| |||
|
S30-JP DF280SA-IE3
Art.nr:
28033CT44N55001
Kopierad
|
4
|
B5
|
280
|
75 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
614 kg
|
| |||
|
S30-JP DF280MA-IE3
Art.nr:
28033CT44N55002
Kopierad
|
4
|
B5
|
280
|
90 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
663 kg
|
| |||
|
S30-JP DF315SA-IE3
Art.nr:
31533CT44N55001
Kopierad
|
4
|
B5
|
315
|
110 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
873 kg
|
| |||
|
S30-JP DF315MA-IE3
Art.nr:
31533CT44N55002
Kopierad
|
4
|
B5
|
315
|
132 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
930 kg
|
| |||
|
S30-JP DF315LA-IE3
Art.nr:
31533CT44N55003
Kopierad
|
4
|
B5
|
315
|
160 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
|
| |||
|
S30-JP DF315MD-IE3
Art.nr:
31533CT44N55005
Kopierad
|
4
|
B5
|
315
|
200 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
1158 kg
|
| |||
|
S30-JP DF355MA-IE3
Art.nr:
35533CT44N55004
Kopierad
|
4
|
B5
|
355
|
250 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
1504 kg
|
| |||
|
S30-JP DF355MB-IE3
Art.nr:
35533CT44N55006
Kopierad
|
4
|
B5
|
355
|
315 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
1460 kg
|
| |||
|
S30-JP DF355MC-IE3
Art.nr:
35533CT44N55007
Kopierad
|
4
|
B5
|
355
|
355 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
1612 kg
|
| |||
|
S30-JP DA80MA-IE3
Art.nr:
08033AT42N45001
Kopierad
|
4
|
B14
|
80
|
0,55 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
10 kg
|
| |||
|
S30-JP DA90L-IE3
Art.nr:
09033AT42N45002
Kopierad
|
4
|
B14
|
90
|
1,5 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
16 kg
|
| |||
|
S30-JP DA112M-IE3
Art.nr:
11233AT44N45001
Kopierad
|
4
|
B14
|
112
|
4 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
31 kg
|
| |||
|
S30-JP DA132M-IE3
Art.nr:
13233AT44N45002
Kopierad
|
4
|
B14
|
132
|
7,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
60 kg
|
| |||
|
S30-JP DA160M-IE3
Art.nr:
16033AT44N45001
Kopierad
|
4
|
B14
|
160
|
11 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
92 kg
|
| |||
|
S30-JP DA160L-IE3
Art.nr:
16033AT44N45002
Kopierad
|
4
|
B14
|
160
|
15 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
114 kg
|
| |||
|
S30-JP DF160M-IE3
Art.nr:
16033CT44F45001
Kopierad
|
4
|
B14
|
160
|
11 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
120 kg
|
| |||
|
S30-JP DF160LA-IE3
Art.nr:
16033CT44F45002
Kopierad
|
4
|
B14
|
160
|
15 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
142 kg
|
| |||
|
S30-JP DA90S-IE3
Art.nr:
09033AT42N45001
Kopierad
|
4
|
B14
|
90
|
1,1 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
14 kg
|
| |||
|
S30-JP DA100L1-IE3
Art.nr:
10033AT42N45001
Kopierad
|
4
|
B14
|
100
|
2,2 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
22 kg
|
| |||
|
S30-JP DA100L2-IE3
Art.nr:
10033AT42N45002
Kopierad
|
4
|
B14
|
100
|
3 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
25 kg
|
| |||
|
S30-JP DA132S-IE3
Art.nr:
13233AT44N45001
Kopierad
|
4
|
B14
|
132
|
5,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
47 kg
|
| |||
|
S30-JP DA80MA-IE3
Art.nr:
08033AT42R85001
Kopierad
|
4
|
B35
|
80
|
0,55 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
10 kg
|
| |||
|
S30-JP DA80MB-IE3
Art.nr:
08033AT42R85002
Kopierad
|
4
|
B35
|
80
|
0,75 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
12 kg
|
| |||
|
S30-JP DA90S-IE3
Art.nr:
09033AT42R85001
Kopierad
|
4
|
B35
|
90
|
1,1 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
14 kg
|
| |||
|
S30-JP DA90L-IE3
Art.nr:
09033AT42R85002
Kopierad
|
4
|
B35
|
90
|
1,5 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
17 kg
|
| |||
|
S30-JP DA100L1-IE3
Art.nr:
10033AT42R85001
Kopierad
|
4
|
B35
|
100
|
2,2 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
22 kg
|
| |||
|
S30-JP DA100L2-IE3
Art.nr:
10033AT42R85002
Kopierad
|
4
|
B35
|
100
|
3 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
25 kg
|
| |||
|
S30-JP DA112M-IE3
Art.nr:
11233AT44R85001
Kopierad
|
4
|
B35
|
112
|
4 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
31 kg
|
| |||
|
S30-JP DA132S-IE3
Art.nr:
13233AT44M85001
Kopierad
|
4
|
B35
|
132
|
5,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
45 kg
|
| |||
|
S30-JP DA132M-IE3
Art.nr:
13233AT44M85002
Kopierad
|
4
|
B35
|
132
|
7,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
58 kg
|
| |||
|
S30-JP DA160M-IE3
Art.nr:
16033AT44M85001
Kopierad
|
4
|
B35
|
160
|
11 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
89 kg
|
| |||
|
S30-JP DA160L-IE3
Art.nr:
16033AT44M85002
Kopierad
|
4
|
B35
|
160
|
15 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
111 kg
|
| |||
|
S30-JP DA180M-IE3
Art.nr:
18033AT44M85001
Kopierad
|
4
|
B35
|
180
|
18,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
134 kg
|
| |||
|
S30-JP DA180L-IE3
Art.nr:
18033AT44M85002
Kopierad
|
4
|
B35
|
180
|
22 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
152 kg
|
| |||
|
S30-JP DA200L-IE3
Art.nr:
20033AT44M85001
Kopierad
|
4
|
B35
|
200
|
30 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
211 kg
|
| |||
|
S30-JP DA225S-IE3
Art.nr:
22533AT44M85001
Kopierad
|
4
|
B35
|
225
|
37 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
260 kg
|
| |||
|
S30-JP DA225M-IE3
Art.nr:
22533AT44M85002
Kopierad
|
4
|
B35
|
225
|
45 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
291 kg
|
| |||
|
S30-JP DF160M-IE3
Art.nr:
16033CT44F85001
Kopierad
|
4
|
B35
|
160
|
11 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
114 kg
|
| |||
|
S30-JP DF160LA-IE3
Art.nr:
16033CT44F85002
Kopierad
|
4
|
B35
|
160
|
15 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
138 kg
|
| |||
|
S30-JP DF180MA-IE3
Art.nr:
18033CT44F85001
Kopierad
|
4
|
B35
|
180
|
18,5 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
127 kg
|
| |||
|
S30-JP DF180LA-IE3
Art.nr:
18033CT44F85002
Kopierad
|
4
|
B35
|
180
|
22 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
180 kg
|
| |||
|
S30-JP DF200LA-IE3
Art.nr:
20033CT44F85001
Kopierad
|
4
|
B35
|
200
|
30 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
234 kg
|
| |||
|
S30-JP DF225SA-IE3
Art.nr:
22533CT44F85001
Kopierad
|
4
|
B35
|
225
|
37 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
307 kg
|
| |||
|
S30-JP DF225MA-IE3
Art.nr:
22533CT44F85002
Kopierad
|
4
|
B35
|
225
|
45 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
316 kg
|
| |||
|
S30-JP DF250MA-IE3
Art.nr:
25033CT44F85001
Kopierad
|
4
|
B35
|
250
|
55 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
439 kg
|
| |||
|
S30-JP DF280SA-IE3
Art.nr:
28033CT44F85001
Kopierad
|
4
|
B35
|
280
|
75 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
603 kg
|
| |||
|
S30-JP DF280MA-IE3
Art.nr:
28033CT44F85002
Kopierad
|
4
|
B35
|
280
|
90 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
654 kg
|
| |||
|
S30-JP DF315SA-IE3
Art.nr:
31533CT44F85001
Kopierad
|
4
|
B35
|
315
|
110 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
864 kg
|
| |||
|
S30-JP DF315MA-IE3
Art.nr:
31533CT44F85002
Kopierad
|
4
|
B35
|
315
|
132 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
920 kg
|
| |||
|
S30-JP DF315LA-IE3
Art.nr:
31533CT44F85003
Kopierad
|
4
|
B35
|
315
|
160 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
990 kg
|
| |||
|
S30-JP DF315MD-IE3
Art.nr:
31533CT44F85005
Kopierad
|
4
|
B35
|
315
|
200 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
1148 kg
|
| |||
|
S30-JP DF355MA-IE3
Art.nr:
35533CT44F85004
Kopierad
|
4
|
B35
|
355
|
250 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
1430 kg
|
| |||
|
S30-JP DF355MB-IE3
Art.nr:
35533CT44F85006
Kopierad
|
4
|
B35
|
355
|
315 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
1578 kg
|
| |||
|
S30-JP DF355MC-IE3
Art.nr:
35533CT44F85007
Kopierad
|
4
|
B35
|
355
|
355 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
1612 kg
|
| |||
|
S30-JP DA80MA-IE3
Art.nr:
08033AT42R75001
Kopierad
|
4
|
B34
|
80
|
0,55 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
10 kg
|
| |||
|
S30-JP DA90S-IE3
Art.nr:
09033AT42R75001
Kopierad
|
4
|
B34
|
90
|
1,1 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
14 kg
|
| |||
|
S30-JP DA90L-IE3
Art.nr:
09033AT42R75002
Kopierad
|
4
|
B34
|
90
|
1,5 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
17 kg
|
| |||
|
S30-JP DA100L1-IE3
Art.nr:
10033AT42R75001
Kopierad
|
4
|
B34
|
100
|
2,2 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
22 kg
|
| |||
|
S30-JP DA100L2-IE3
Art.nr:
10033AT42R75002
Kopierad
|
4
|
B34
|
100
|
3 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1500 rpm
|
25 kg
|
| |||
|
S30-JP DA112M-IE3
Art.nr:
11233AT44R75001
Kopierad
|
4
|
B34
|
112
|
4 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
31 kg
|
| |||
|
S30-JP DA132S-IE3
Art.nr:
13233AT44M75001
Kopierad
|
4
|
B34
|
132
|
5,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
45 kg
|
| |||
|
S30-JP DA132M-IE3
Art.nr:
13233AT44M75002
Kopierad
|
4
|
B34
|
132
|
7,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
58 kg
|
| |||
|
S30-JP DA160M-IE3
Art.nr:
16033AT44M75001
Kopierad
|
4
|
B34
|
160
|
11 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
89 kg
|
| |||
|
S30-JP DA160L-IE3
Art.nr:
16033AT44M75002
Kopierad
|
4
|
B34
|
160
|
15 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1500 rpm
|
111 kg
|
| |||
|
S30-JP DF160M-IE3
Art.nr:
16033CT44F75001
Kopierad
|
4
|
B34
|
160
|
11 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
114 kg
|
| |||
|
S30-JP DF160LA-IE3
Art.nr:
16033CT44F75002
Kopierad
|
4
|
B34
|
160
|
15 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1500 rpm
|
138 kg
|
| |||
|
S30-JP DA132S-IE3
Art.nr:
13233AT62M35001
Kopierad
|
6
|
B3
|
132
|
3 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1000 rpm
|
37 kg
|
| |||
|
S30-JP DA132M-IE3
Art.nr:
13233AT64M35001
Kopierad
|
6
|
B3
|
132
|
4 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
46 kg
|
| |||
|
S30-JP DA132M-IE3
Art.nr:
13233AT64M35002
Kopierad
|
6
|
B3
|
132
|
5,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
57 kg
|
| |||
|
S30-JP DA160M-IE3
Art.nr:
16033AT64M35001
Kopierad
|
6
|
B3
|
160
|
7,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
77 kg
|
| |||
|
S30-JP DA160L-IE3
Art.nr:
16033AT64M35002
Kopierad
|
6
|
B3
|
160
|
11 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
103 kg
|
| |||
|
S30-JP DA180L-IE3
Art.nr:
18033AT64M35001
Kopierad
|
6
|
B3
|
180
|
15 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
131 kg
|
| |||
|
S30-JP DA200LA-IE3
Art.nr:
20033AT64M35001
Kopierad
|
6
|
B3
|
200
|
18,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
177 kg
|
| |||
|
S30-JP DA200LB-IE3
Art.nr:
20033AT64M35002
Kopierad
|
6
|
B3
|
200
|
22 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
199 kg
|
| |||
|
S30-JP DA225M-IE3
Art.nr:
22533AT64M35001
Kopierad
|
6
|
B3
|
225
|
30 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
263 kg
|
| |||
|
S30-JP DF160MA-IE3
Art.nr:
16033CT64F35001
Kopierad
|
6
|
B3
|
160
|
7,5 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
101 kg
|
| |||
|
S30-JP DF160LA-IE3
Art.nr:
16033CT64F35002
Kopierad
|
6
|
B3
|
160
|
11 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
139 kg
|
| |||
|
S30-JP DF180LA-IE3
Art.nr:
18033CT64F35001
Kopierad
|
6
|
B3
|
180
|
15 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
169 kg
|
| |||
|
S30-JP DF200LA-IE3
Art.nr:
20033CT64F35001
Kopierad
|
6
|
B3
|
200
|
18,5 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
217 kg
|
| |||
|
S30-JP DF200LB-IE3
Art.nr:
20033CT64F35002
Kopierad
|
6
|
B3
|
200
|
22 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
227 kg
|
| |||
|
S30-JP DF225MA-IE3
Art.nr:
22533CT64F35001
Kopierad
|
6
|
B3
|
225
|
30 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
302 kg
|
| |||
|
S30-JP DF250MA-IE3
Art.nr:
25033CT64F35001
Kopierad
|
6
|
B3
|
250
|
37 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
394 kg
|
| |||
|
S30-JP DF280SA-IE3
Art.nr:
28033CT64F35001
Kopierad
|
6
|
B3
|
280
|
45 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
561 kg
|
| |||
|
S30-JP DF280MA-IE3
Art.nr:
28033CT64F35002
Kopierad
|
6
|
B3
|
280
|
55 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
574 kg
|
| |||
|
S30-JP DF315SA-IE3
Art.nr:
31533CT64F35001
Kopierad
|
6
|
B3
|
315
|
75 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
785 kg
|
| |||
|
S30-JP DF315MA-IE3
Art.nr:
31533CT64F35002
Kopierad
|
6
|
B3
|
315
|
90 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
920 kg
|
| |||
|
S30-JP DF315MB-IE3
Art.nr:
31533CT64F35003
Kopierad
|
6
|
B3
|
315
|
110 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
947 kg
|
| |||
|
S30-JP DF315MC-IE3
Art.nr:
31533CT64F35004
Kopierad
|
6
|
B3
|
315
|
132 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
1106 kg
|
| |||
|
S30-JP DF355MA-IE3
Art.nr:
35533CT64F35001
Kopierad
|
6
|
B3
|
355
|
160 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
1400 kg
|
| |||
|
S30-JP DF355MB-IE3
Art.nr:
35533CT64F35003
Kopierad
|
6
|
B3
|
355
|
200 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
1460 kg
|
| |||
|
S30-JP DF355MC-IE3
Art.nr:
35533CT64F35005
Kopierad
|
6
|
B3
|
355
|
250 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
1520 kg
|
| |||
|
S30-JP DA132S-IE3
Art.nr:
13233AT62N55001
Kopierad
|
6
|
B5
|
132
|
3 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1000 rpm
|
37 kg
|
| |||
|
S30-JP DA132M-IE3
Art.nr:
13233AT64N55001
Kopierad
|
6
|
B5
|
132
|
4 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
46 kg
|
| |||
|
S30-JP DA132M-IE3
Art.nr:
13233AT64N55002
Kopierad
|
6
|
B5
|
132
|
5,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
57 kg
|
| |||
|
S30-JP DA160M-IE3
Art.nr:
16033AT64N55001
Kopierad
|
6
|
B5
|
160
|
7,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
77 kg
|
| |||
|
S30-JP DA160L-IE3
Art.nr:
16033AT64N55002
Kopierad
|
6
|
B5
|
160
|
11 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
103 kg
|
| |||
|
S30-JP DA180L-IE3
Art.nr:
18033AT64N55001
Kopierad
|
6
|
B5
|
180
|
15 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
131 kg
|
| |||
|
S30-JP DA200LA-IE3
Art.nr:
20033AT64N55001
Kopierad
|
6
|
B5
|
200
|
18,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
177 kg
|
| |||
|
S30-JP DA200LB-IE3
Art.nr:
20033AT64N55002
Kopierad
|
6
|
B5
|
200
|
22 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
199 kg
|
| |||
|
S30-JP DA225M-IE3
Art.nr:
22533AT64N55001
Kopierad
|
6
|
B5
|
225
|
30 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
263 kg
|
| |||
|
S30-JP DF160MA-IE3
Art.nr:
16033CT64N55001
Kopierad
|
6
|
B5
|
160
|
7,5 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
101 kg
|
| |||
|
S30-JP DF160LA-IE3
Art.nr:
16033CT64N55002
Kopierad
|
6
|
B5
|
160
|
11 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
139 kg
|
| |||
|
S30-JP DF180LA-IE3
Art.nr:
18033CT64N55001
Kopierad
|
6
|
B5
|
180
|
15 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
169 kg
|
| |||
|
S30-JP DF200LA-IE3
Art.nr:
20033CT64N55001
Kopierad
|
6
|
B5
|
200
|
18,5 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
217 kg
|
| |||
|
S30-JP DF200LB-IE3
Art.nr:
20033CT64N55002
Kopierad
|
6
|
B5
|
200
|
22 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
227 kg
|
| |||
|
S30-JP DF225MA-IE3
Art.nr:
22533CT64N55001
Kopierad
|
6
|
B5
|
225
|
30 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
302 kg
|
| |||
|
S30-JP DF250MA-IE3
Art.nr:
25033CT64N55001
Kopierad
|
6
|
B5
|
250
|
37 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
394 kg
|
| |||
|
S30-JP DF280SA-IE3
Art.nr:
28033CT64N55001
Kopierad
|
6
|
B5
|
280
|
45 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
561 kg
|
| |||
|
S30-JP DF280MA-IE3
Art.nr:
28033CT64N55002
Kopierad
|
6
|
B5
|
280
|
55 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
574 kg
|
| |||
|
S30-JP DF315SA-IE3
Art.nr:
31533CT64N55001
Kopierad
|
6
|
B5
|
315
|
75 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
785 kg
|
| |||
|
S30-JP DF315MA-IE3
Art.nr:
31533CT64N55002
Kopierad
|
6
|
B5
|
315
|
90 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
920 kg
|
| |||
|
S30-JP DF315MB-IE3
Art.nr:
31533CT64N55003
Kopierad
|
6
|
B5
|
315
|
110 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
947 kg
|
| |||
|
S30-JP DF315MC-IE3
Art.nr:
31533CT64N55004
Kopierad
|
6
|
B5
|
315
|
132 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
1106 kg
|
| |||
|
S30-JP DF355MA-IE3
Art.nr:
35533CT64N55001
Kopierad
|
6
|
B5
|
355
|
160 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
1400 kg
|
| |||
|
S30-JP DF355MB-IE3
Art.nr:
35533CT64N55003
Kopierad
|
6
|
B5
|
355
|
200 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
1460 kg
|
| |||
|
S30-JP DF355MC-IE3
Art.nr:
35533CT64N55005
Kopierad
|
6
|
B5
|
355
|
250 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
1520 kg
|
| |||
|
S30-JP DA132S-IE3
Art.nr:
13233AT62N45001
Kopierad
|
6
|
B14
|
132
|
3 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1000 rpm
|
37 kg
|
| |||
|
S30-JP DA132M-IE3
Art.nr:
13233AT64N45001
Kopierad
|
6
|
B14
|
132
|
4 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
46 kg
|
| |||
|
S30-JP DA132M-IE3
Art.nr:
13233AT64N45002
Kopierad
|
6
|
B14
|
132
|
5,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
57 kg
|
| |||
|
S30-JP DA160M-IE3
Art.nr:
16033AT64N45001
Kopierad
|
6
|
B14
|
160
|
7,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
77 kg
|
| |||
|
S30-JP DA160L-IE3
Art.nr:
16033AT64N45002
Kopierad
|
6
|
B14
|
160
|
11 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
103 kg
|
| |||
|
S30-JP DF160MA-IE3
Art.nr:
16033CT64F45001
Kopierad
|
6
|
B14
|
160
|
7,5 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
101 kg
|
| |||
|
S30-JP DF160LA-IE3
Art.nr:
16033CT64F45002
Kopierad
|
6
|
B14
|
160
|
11 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
139 kg
|
| |||
|
S30-JP DA132S-IE3
Art.nr:
13233AT62M85001
Kopierad
|
6
|
B35
|
132
|
3 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1000 rpm
|
37 kg
|
| |||
|
S30-JP DA132M-IE3
Art.nr:
13233AT64M85001
Kopierad
|
6
|
B35
|
132
|
4 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
46 kg
|
| |||
|
S30-JP DA132M-IE3
Art.nr:
13233AT64M85002
Kopierad
|
6
|
B35
|
132
|
5,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
57 kg
|
| |||
|
S30-JP DA160M-IE3
Art.nr:
16033AT64M85001
Kopierad
|
6
|
B35
|
160
|
7,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
77 kg
|
| |||
|
S30-JP DA160L-IE3
Art.nr:
16033AT64M85002
Kopierad
|
6
|
B35
|
160
|
11 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
103 kg
|
| |||
|
S30-JP DA180L-IE3
Art.nr:
18033AT64M85001
Kopierad
|
6
|
B35
|
180
|
15 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
131 kg
|
| |||
|
S30-JP DA200LA-IE3
Art.nr:
20033AT64M85001
Kopierad
|
6
|
B35
|
200
|
18,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
177 kg
|
| |||
|
S30-JP DA200LB-IE3
Art.nr:
20033AT64M85002
Kopierad
|
6
|
B35
|
200
|
22 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
199 kg
|
| |||
|
S30-JP DA225M-IE3
Art.nr:
22533AT64M85001
Kopierad
|
6
|
B35
|
225
|
30 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
263 kg
|
| |||
|
S30-JP DF160MA-IE3
Art.nr:
16033CT64F85001
Kopierad
|
6
|
B35
|
160
|
7,5 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
101 kg
|
| |||
|
S30-JP DF160LA-IE3
Art.nr:
16033CT64F85002
Kopierad
|
6
|
B35
|
160
|
11 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
139 kg
|
| |||
|
S30-JP DF180LA-IE3
Art.nr:
18033CT64F85001
Kopierad
|
6
|
B35
|
180
|
15 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
169 kg
|
| |||
|
S30-JP DF200LA-IE3
Art.nr:
20033CT64F85001
Kopierad
|
6
|
B35
|
200
|
18,5 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
217 kg
|
| |||
|
S30-JP DF200LB-IE3
Art.nr:
20033CT64F85002
Kopierad
|
6
|
B35
|
200
|
22 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
227 kg
|
| |||
|
S30-JP DF225MA-IE3
Art.nr:
22533CT64F85001
Kopierad
|
6
|
B35
|
225
|
30 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
302 kg
|
| |||
|
S30-JP DF250MA-IE3
Art.nr:
25033CT64F85001
Kopierad
|
6
|
B35
|
250
|
37 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
394 kg
|
| |||
|
S30-JP DF280SA-IE3
Art.nr:
28033CT64F85001
Kopierad
|
6
|
B35
|
280
|
45 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
561 kg
|
| |||
|
S30-JP DF280MA-IE3
Art.nr:
28033CT64F85002
Kopierad
|
6
|
B35
|
280
|
55 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
574 kg
|
| |||
|
S30-JP DF315SA-IE3
Art.nr:
31533CT64F85001
Kopierad
|
6
|
B35
|
315
|
75 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
785 kg
|
| |||
|
S30-JP DF315MA-IE3
Art.nr:
31533CT64F85002
Kopierad
|
6
|
B35
|
315
|
90 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
920 kg
|
| |||
|
S30-JP DF315MB-IE3
Art.nr:
31533CT64F85003
Kopierad
|
6
|
B35
|
315
|
110 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
947 kg
|
| |||
|
S30-JP DF315MC-IE3
Art.nr:
31533CT64F85004
Kopierad
|
6
|
B35
|
315
|
132 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
1106 kg
|
| |||
|
S30-JP DF355MA-IE3
Art.nr:
35533CT64F85001
Kopierad
|
6
|
B35
|
355
|
160 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
1400 kg
|
| |||
|
S30-JP DF355MB-IE3
Art.nr:
35533CT64F85003
Kopierad
|
6
|
B35
|
355
|
200 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
1460 kg
|
| |||
|
S30-JP DF355MC-IE3
Art.nr:
35533CT64F85005
Kopierad
|
6
|
B35
|
355
|
250 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
1520 kg
|
| |||
|
S30-JP DA132S-IE3
Art.nr:
13233AT62M75001
Kopierad
|
6
|
B34
|
132
|
3 kW
|
IE3
|
F
|
Aluminium
|
230/400 V
|
1000 rpm
|
37 kg
|
| |||
|
S30-JP DA132M-IE3
Art.nr:
13233AT64M75001
Kopierad
|
6
|
B34
|
132
|
4 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
46 kg
|
| |||
|
S30-JP DA132M-IE3
Art.nr:
13233AT64M75002
Kopierad
|
6
|
B34
|
132
|
5,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
57 kg
|
| |||
|
S30-JP DA160M-IE3
Art.nr:
16033AT64M75001
Kopierad
|
6
|
B34
|
160
|
7,5 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
77 kg
|
| |||
|
S30-JP DA160L-IE3
Art.nr:
16033AT64M75002
Kopierad
|
6
|
B34
|
160
|
11 kW
|
IE3
|
F
|
Aluminium
|
400/690 V
|
1000 rpm
|
103 kg
|
| |||
|
S30-JP DF160MA-IE3
Art.nr:
16033CT64F75001
Kopierad
|
6
|
B34
|
160
|
7,5 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
101 kg
|
| |||
|
S30-JP DF160LA-IE3
Art.nr:
16033CT64F75002
Kopierad
|
6
|
B34
|
160
|
11 kW
|
IE3
|
F
|
Gjutjärn
|
400/690 V
|
1000 rpm
|
139 kg
|
|
Nedladdning av CAD När du ser en grön på en artikel i listan betyder det att du kan ladda ner dess CAD-ritning i det format som du först väljer i listan här. Klicka sedan på ikonen så genereras CAD-filen och nedladdning påbörjas direkt.
Välj variant i listan
Eric Svensson
Hittar du inte vad du söker eller kan vi hjälpa dig på något vis? Fyll i formuläret nedan så återkommer vi så snart vi kan!
Vänligen inkludera ett telefonnummer om du önskar bli uppringd.
